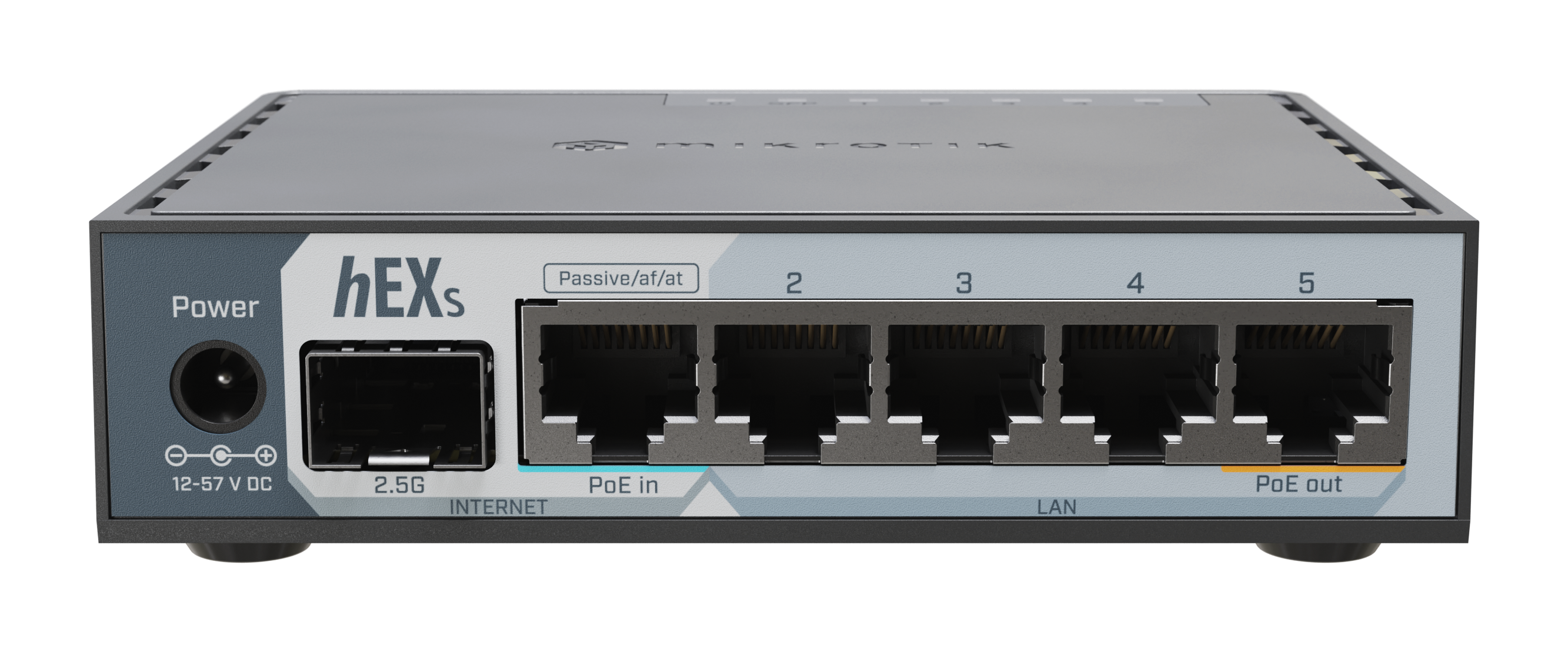

hEX S (2025)

A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU – ideal for homes, offices, or underfunded labs that need reliable performance.

Product Information

Shipping & Returns

From ₹4,580.00
hEX S (2025)—
₹4,580.00

Specification

Specifications
  • Product codeE60iUGS
  • ArchitectureARM 32bit
  • CPUEN7562CT
  • CPU core count2
  • CPU nominal frequency950 MHz
  • CPU threads count2
  • Switch chip modelEN7523
  • RouterOS license4
  • Operating SystemRouterOS v7
  • Size of RAM512 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 100,000 hours at 25C
  • Tested ambient temperature-40°C to 70°C
Powering
  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-57 V
  • Max power consumption23 W
  • Max power consumption without attachments5 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage18-57 V
PoE-out
  • PoE-out portsEther5
  • PoE outPassive PoE up to 57V
  • Low voltage PoE-Out current limit0.5 A
  • High voltage PoE-Out current limit0.5 A
Ethernet
  • 10/100/1000 Ethernet ports5
  • Number of 1G Ethernet ports with PoE-out1
Fiber
  • SFP ports1 (2.5G supported)
Peripherals
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB 3.0 type A
  • Max USB current (A)1
Other
  • CPU temperature monitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes
  • Mode buttonYes
Certification & Approvals
  • CertificationCE, EAC, ROHS
  • IP20
Specifications
  • Product codeE60iUGS

Documents

BrochurePDFSafety and regulatory informationPDFDeclaration of Conformity (DoC)PDFUser manualProduct page on MikroTik

Documents, manuals, and software are hosted by MikroTik and open on their official site.
